The non-insulated Schüco ADS 65.NI FR 30 door and wall construction offers flexible system solutions for the fire resistance classes E30 (G30) and EW30 (G30)

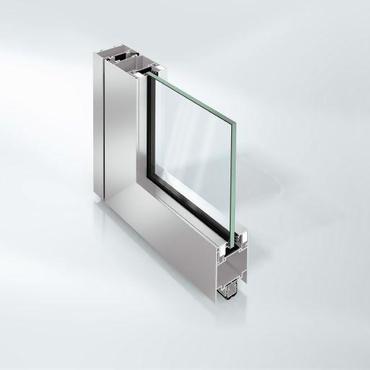

The Schüco ADS 65.NI FR 30 fire door and wall system is based on highly stable, non-insulated aluminium profiles with a basic depth of 65 mm. The system combines total fulfillment of fire protection and smoke protection requirements with multi-purpose features such as sound reduction, panic function and burglar resistance. At the same time, Schüco is setting new standards for aluminium fire protection constructions with the newly developed system solution for E30-(G30) applications. Large single and double-leaf door constructions with concealed fittings offer maximum design freedom whilst fulfilling the most exacting architectural demands. To this end, tested panel solutions can be used as a new type of infill.

Schüco ADS 65.NI FR 30 impresses as an E30 solution in terms of cost effectiveness too: the system solution does not require any fire boards for door constructions or fixed glazing. It offers a multi-purpose groove as well as push-in fittings for easy, rapid fabrication.

Schüco ADS 65.NI FR 30 is a fully tested system which boasts numerous country-specific approvals which serve as fire protection certification. In Germany, only G30 fixed glazing is used in accordance with building regulations.
